Waveguide Components In Radar And Electronic Warfare

We know the importance of security and reliability in creating the best radar and electronic warfare solutions. It covers Airborne X/Ku/Ka-band, Shipborne L/S/X/Ka-band, Land Based L/S/C/X/Ka-band. Among them, X-band and S-band are widely used in system. With our product and microwave components, Secure and Reliable solution will be offered.

In addition, Dolph Microwave creates detailed Radar and EW modeling components as well as designs and research the related simulations. We use high-fidelity simulations to show customers the capabilities to expect using our creative advanced, techniques and design approaches.

The components can be used including antenna, microwave components. Weather radar is familiar for this application. Weather radar is a radar specially used for atmospheric detection. It belongs to the active microwave atmospheric remote sensing equipment.

Meteorological radar is one of the main detection tools for warning and forecasting medium and small scale weather systems (such as typhoons and heavy rain clouds). Meteorological radar is an important means of meteorological monitoring and plays an extremely important role in sudden and catastrophic monitoring, forecasting and warning.

As a professional waveguide company, dolph microwave provides phased array antenna radar, array antenna in radar system, electronic warfare and radar systems, antenna in radar, parabolic radar antenna, doppler radar antenna, x band radar antenna, radar antenna array, etc. For more information, please feel free to contact us!

Waveguide Components In Research And Academia

Dolph Microwave Research and Academia includes many components like Multi-band feed, Industrial microwave and Slotted array antenna.

Multi-band feed particularly inlcudes C&Ku dual band, S/X dual band, Ku/Ka dual band and X/Ka dual band.

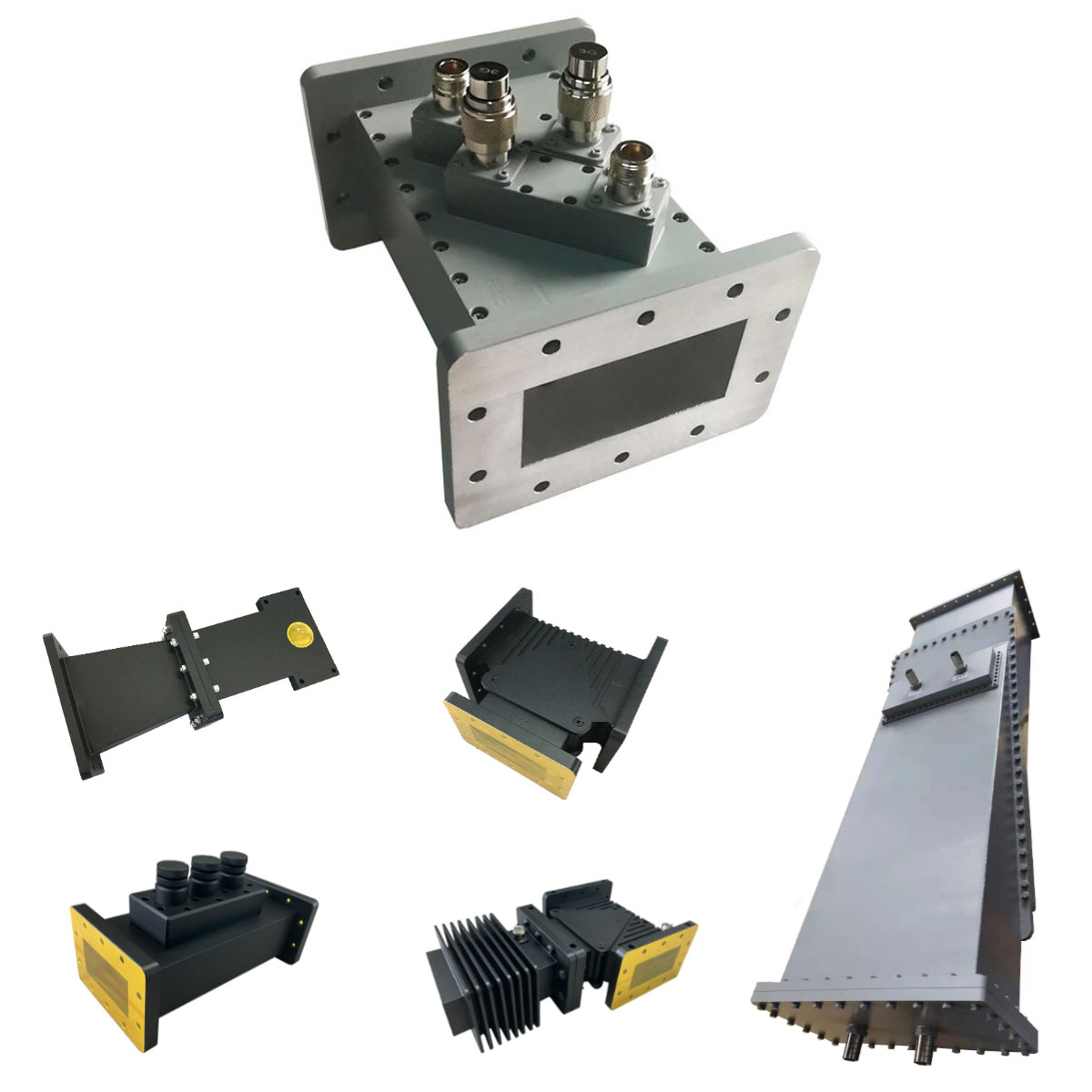

For the industrial microwave, it is mainly related to heating system including components 2450MHz and 915Mhz mode converter antenna, 3 stub tunner, transition, pressure window and magnetron cavity.

Slotted array antenna is divided into travelling wave antenna and standing wave antenna.

All the components selection is based on customer detailed requirement. It can be covered with different frequency range with corresponding waveguide size. Or it still can be customized based on specific parameter, dimension and performance requirement.

As a professional waveguide company, we provide academy tv antenna, microwave research, antenna research, lab microwave, microwave lab, laboratory microwave, etc. For waveguide types or more information, please feel free to contact us!

Waveguide Components In and Measurement

The main purpose is engineers need test components that can measure a variety of signals with great accuracy in order to provide a dependable end-user experience.

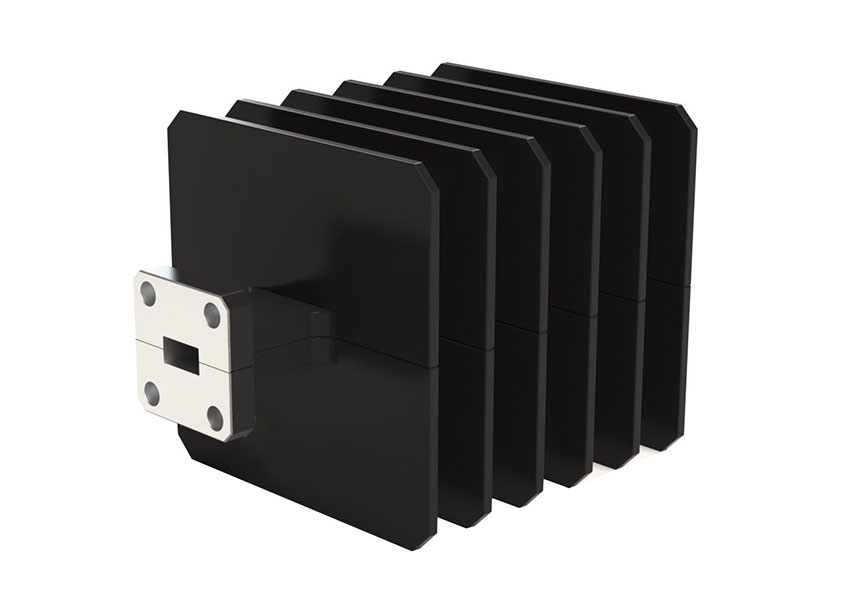

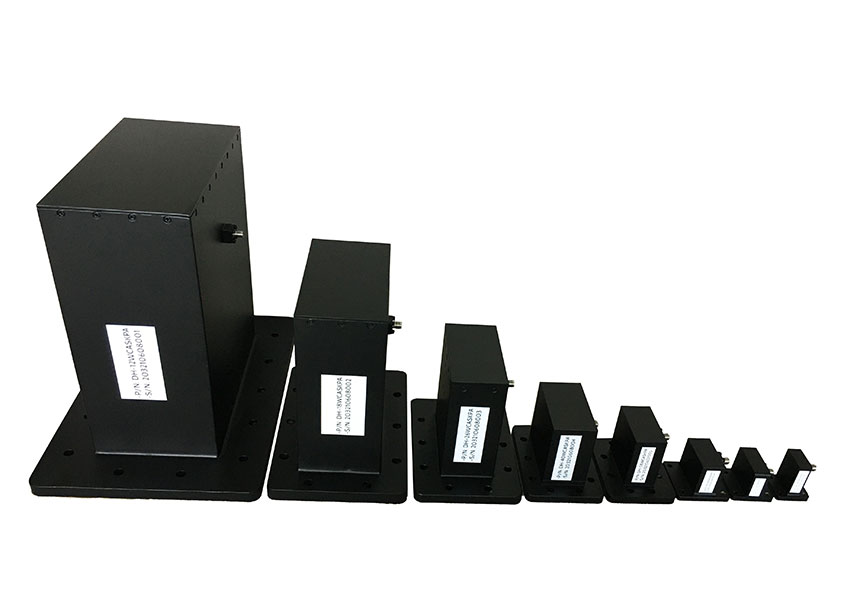

The components includes precision coaxial adapter both in right angle and end launch type. Matching load with VSWR at least 1.03.

In addition, calibration kits are still used which include the components like short, coaxial adapter, termination etc.

All these components are available in various frequency range with various types. It contains Impedance measurement, S-Parameters and the Smith Chart, Power Measurement, Noise Figure and Phase Noise measurement, Frequency measurements (Spectrum Analysis), Gain Compression and Intermodulation and Network Analysis.

Any requirement for the test and measurement, please do not hesitate to ask for more.

As one of the mosy professional waveguide manufacturers, we provide waveguide testing, waveguide parameters measurement, testing antenna with spectrum analyzer, rf antenna testing, measure vswr with oscilloscope, pim antenna testing, measure vswr with spectrum analyzer, etc. For outdoor antenna test range or satcom antenna price, please feel free to contact us!

Markets of Dolph Microwave's Waveguide Components

Dolph Microwave, a manufacturer of World-Class Microwave Components & Antenna Feed Systems, offers components and integrated solution for customer worldwide. Short delivery and accurate production will be offered based on reliable equipment and experience.

Microwave components and satcom antenna are mainly for Radar, Telecommunication, Military&Space, Aerospace, Defense, Warfare and Industrial microwave etc. It has high performance, high accuracy and precision device requirement.

With Dolph Microwave components, you will enjoy a satisfy solution and system experience. Hope our product will bring you more in future.

For uses of rectangular waveguide and waveguide application, please feel free to contact us!

If you need any kinds of waveguide, please contact us, as a professional waveguide suppliers, dolph microwave is willing to offer you high quality products.

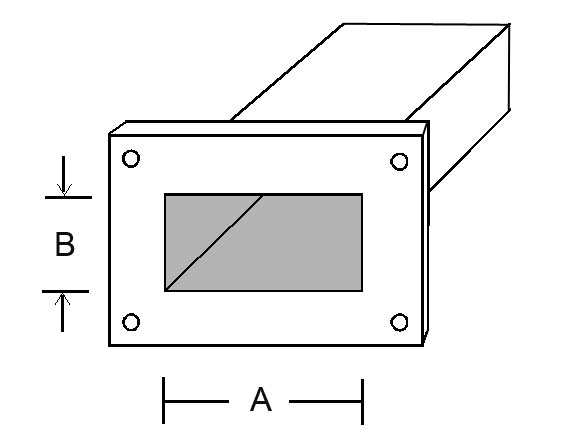

Datasheet of Different Waveguide Sizes

Waveguides is a type of feed line for high frequency signals delivery deliver microwave energy which is lower loss than coaxial cables and are used in microwave communications, industrial microwave, radars, defense and other high frequency applications. The cross section of waveguide is based on the frequency, which size is to fit one complete wavelength of the signal and cover the frequency range.

Three types of waveguides are available from its geometrically shape including Rectangular Waveguides, Double Rigid Waveguides and Circular Waveguides. The details for each type with its waveguide sizes and features.

Double-ridge waveguides are rectangular waveguides with two ridges protruding parallel to the short wall. It is used to solve the wide band requirement which is exceed standard waveguide size with corresponding covered frequency range.

As one of the most professional microwave waveguide manufacturers, we provide wr2300 waveguide, wr770 waveguide, wr 187 waveguide, wr4 waveguide, wr112 dimensions, wr112 frequency range, wr 34 waveguide frequency, wr 42 waveguide frequency, waveguide parts, etc. For more info, please feel free to contact us!
